Huaye Aluminium Gate Manufacturers: Advanced Manufacturing Processes

Huaye was established in 2008 and has 18 years of experience in customized metal doors and aluminium entrance door manufacturing. The factory covers an area of approximately 10,000 square meters and is equipped with CNC precision machining centers, automated spraying production lines, and standardized testing systems, forming a complete manufacturing chain from aluminum profile processing, surface treatment to finished product assembly and quality inspection.

Relying on a mature OEM/ODM system and stable production capacity, Huaye can provide more than 10,000 door styles and configuration combinations, and complies with ISO 9001 and EN series international standards, ensuring that products meet engineering-grade requirements in wind resistance, corrosion resistance, and long-term stability.

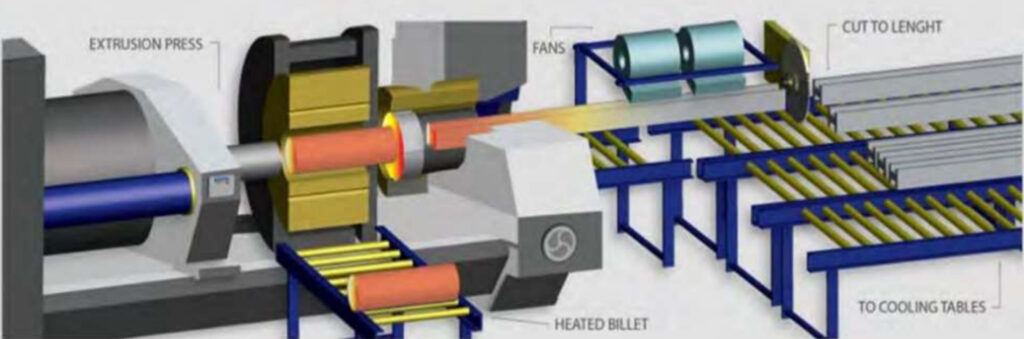

Extrusions & Aluminum Profile Forming

Huaye all aluminium entrance doors are made of structural-grade 6063 aluminum alloy, which has balanced performance in strength, ductility, and corrosion resistance, and is a widely used standard profile in the architectural door and window industry.

• Aluminum is formed into door frame and door leaf profiles through high-temperature extrusion
• Using Huaye’s independently designed proprietary molds for precision forming
• Strict control of extrusion temperature, pressure, and cooling speed
• Ensuring structural consistency and mechanical stability

This process provides a high-precision foundation for subsequent processing and assembly.

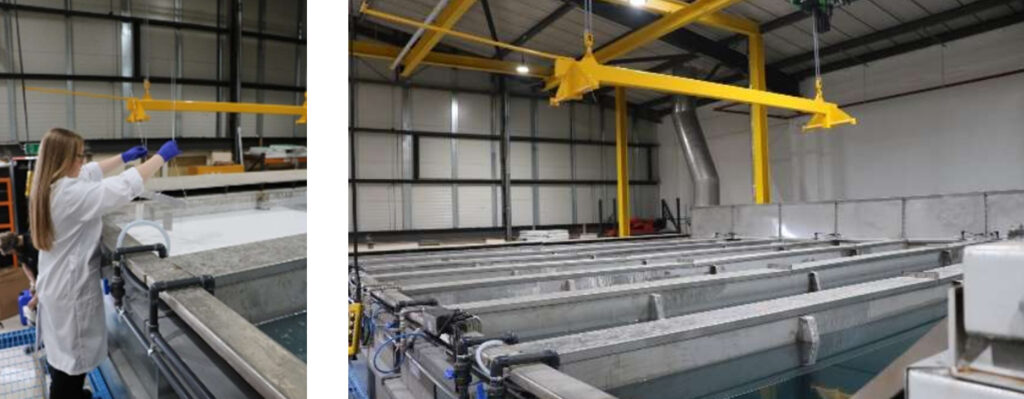

Surface Treatment & Pre-Coating Preparation

Before entering coating, aluminum profiles must undergo a systematic pre-treatment process:

• Seven-stage immersion cleaning process (degreasing, acid washing, alkaline washing, etc.)
• Surface etching and activation treatment
• Formation of polymer sealing protective layer
• Automated drying process

Then it enters the powder coating system and passes through a 24-meter high-temperature curing oven to complete coating curing, ensuring excellent adhesion and weather resistance, with long-term color deviation controlled within a very low range.

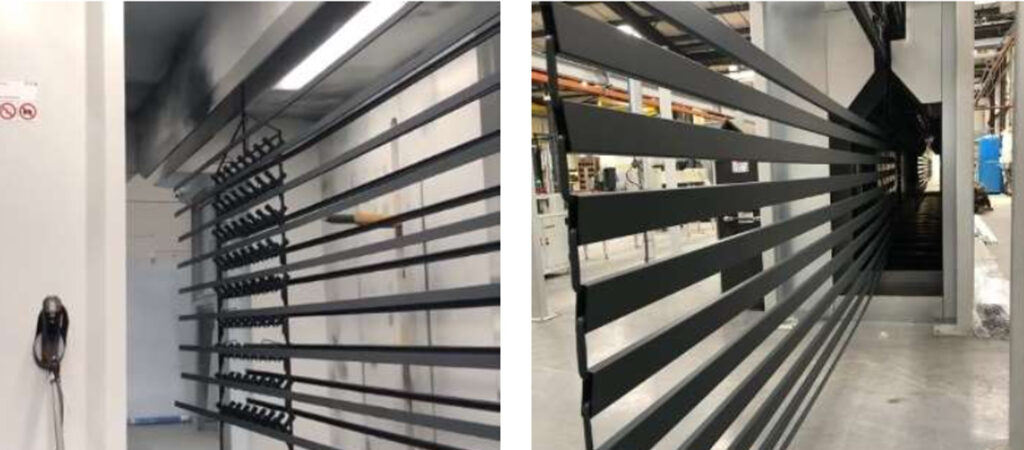

Protective Coating Systems: Powder Coating / Anodizing / Electrophoresis

This is a key process affecting product appearance and service life.

Huaye typically adopts three mainstream processes:

• Powder Coating: environmentally friendly, VOC-free, rich colors
• Anodizing: enhances metallic texture and corrosion resistance
• Electrophoresis: uniform surface, strong weather resistance

According to international coating standards (such as the Qualicoat system), high-quality coatings can remain non-fading for 10–15 years in outdoor environments.

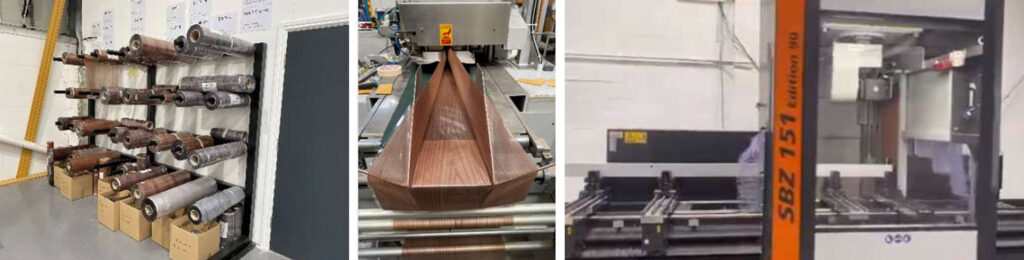

Surface Texture & Decorative Finishing

In Huaye aluminium entrance door manufacturing system, surface texture treatment not only serves aesthetic functions but is also an important step for diversified architectural customization. After the basic coating is cured, profiles can enter multiple high-end decorative surface finishing processes to meet the personalized needs of different markets and projects.

Huaye supports a diversified surface texture and visual effect system, including:

• Multiple surface texture customization system: Wood grain, metal brushed, sand texture, stone texture, matte solid color, high gloss, and special customized patterns are available, suitable for modern architecture, industrial style, and high-end residential design languages.
• High-precision sublimation and transfer printing process: On the coating base, high-temperature sublimation and transfer technology is used to accurately reproduce wood grain and other natural textures, while supporting customer-exclusive pattern customization, achieving highly personalized design expression.
• Multi-texture stable color system: All surface effects are treated with UV resistance to ensure good weather resistance in long-term outdoor environments, effectively reducing fading and visual aging issues.
• Long-term maintenance-free surface performance: Combined with powder coating and texture transfer technology, the products can maintain stable appearance under normal use conditions for a long time without frequent maintenance.

Through multi-process parallel surface treatment systems, Huaye enables aluminium entrance doors to not only have functional advantages but also meet the diversified needs of high-end architecture for custom aluminium gates in terms of visual performance and design freedom.

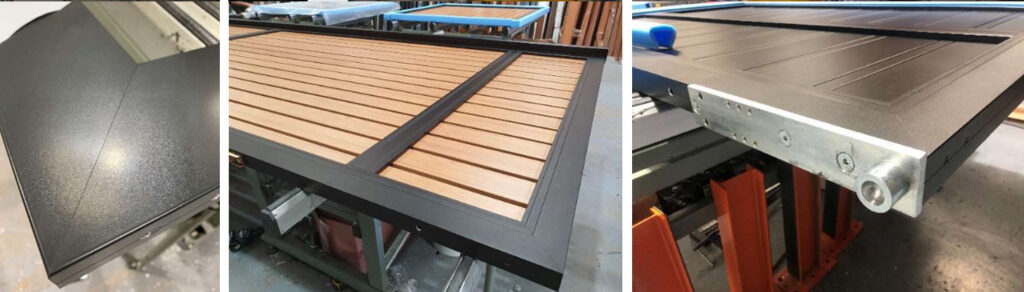

Structural Assembly & Hardware Integration

In Huaye aluminium entrance door manufacturing process, the structural assembly stage is a key step determining overall safety performance and service life. This stage not only involves precise assembly of the door structure but also high-level integration and reinforcement of hardware systems to ensure long-term stability and reliability.

Huaye adopts industrial-grade structural assembly technology combined with high-strength connection methods and customized hardware solutions, including:

• High-strength structural connection and composite fixing process: Door assembly adopts fastening technology similar to high-end automotive manufacturing, combined with high-strength screw fastening and cold-weld epoxy adhesive bonding, achieving dual reinforcement of mechanical and chemical bonding.
• Automated structural reinforcement and corner strengthening: During assembly, automated equipment simultaneously completes structural reinforcement and bonding of door frame and corner areas, significantly improving impact resistance.
• High-strength cold welding performance: The structural holding strength of cold-weld corners can reach over 180 kg/cm² (about 2600 psi), significantly higher than traditional welding methods, effectively reducing deformation and cracking risks.
• Customized hardware integration capability: Huaye supports various high-end hardware systems, including multi-point locks, concealed hinges, anti-theft lock cores, and smart door control systems, which can be flexibly configured according to project requirements.
• Structural curing and stabilization period control: After assembly, the door system requires 2–3 days of natural curing and stabilization to ensure optimal bonding between epoxy resin and mechanical connections.

Through this high-strength structural assembly and hardware integration system, Huaye not only improves the overall load-bearing capacity and safety level of aluminium entrance doors but also further strengthens the engineering reliability and customization flexibility of aluminium gate manufacturers in high-end architectural applications.

Final Quality Inspection & International Standards

Each Huaye aluminium entrance door must undergo strict testing before delivery:

• Dimensional accuracy and structural inspection
• Opening and closing cycle test (≥100,000 cycles)
• Waterproof, air tightness, and wind pressure resistance tests
• Surface adhesion and weather resistance tests

Execution standards include:
ISO 9001, EN 12207, EN 12208, EN 12210 and other international standards, ensuring products meet global engineering-grade requirements.

Through full-process control from aluminum profile extrusion, surface treatment, coating systems to structural assembly and quality inspection, Huaye has established a highly standardized aluminium entrance door manufacturing system.

This complete industrial chain not only ensures product consistency and reliability, but also further strengthens the value of custom aluminium gates in high-end architecture, achieving engineering-grade standards in safety, durability, and design flexibility.

As professional aluminium gate manufacturers, Huaye continues to optimize processes and upgrade manufacturing to provide stable, high-quality, and customizable aluminium door system solutions for global customers.
