Key Takeaways
- Structural Strength Contrast: Aluminum profiles with a 2.0mm wall thickness deliver a 35% increase in flexural deformation resistance compared to 1.5mm, making them the premier choice for high-traffic commercial buildings and high-wind zones.
- Total Cost of Ownership: Purchasing 2.0mm door systems incurs a 10%-15% higher initial material outlay, yet reduces post-installation maintenance and door sagging risks by 80% over a 20-year service life.
- Thermal and Acoustic Performance: Thicker 2.0mm internal chamber profiles support multi-layer insulated glass and wider thermal break strips, significantly lowering heat transfer coefficients (U-value) and improving sound insulation by 8 dB.
- Project Application Matching: A 1.5mm wall thickness suits standard residential buildings, villas, and low-frequency entryways; commercial complexes, hotels, and oversized custom doors strictly require 2.0mm or higher specifications.
Selecting between 1.5mm and 2.0mm aluminum profiles directly determines an entry door’s structural rigidity, wind pressure resistance, and long-term maintenance costs. As leading external door manufacturers and external door suppliers with 18 years of custom fabrication experience, Huaye provides this technical evaluation to help procurement buyers match profile thickness with project engineering demands.

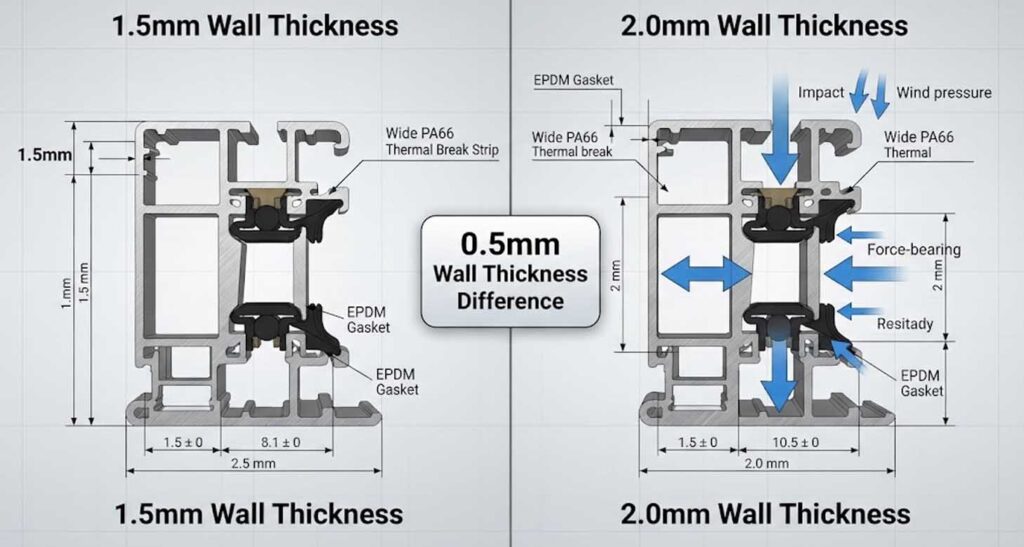

Physical Property Comparison of Aluminum Profile Thicknesses
The cross-sectional wall thickness of aluminum alloy profiles serves as the core metric determining overall structural mechanics. Escalating from 1.5mm to 2.0mm represents a mere 0.5mm increase, yet yields a major leap in material physics. Huaye utilizes high-strength aluminum alloy for door frames and sash substrates, ensuring profiles maintain geometric stability under heavy wind pressure or high-frequency impact loads.
- Section Modulus and Flexural Strength: Structural mechanics testing demonstrates that increasing wall thickness from 1.5mm to 2.0mm raises the moment of inertia by approximately 35%, substantially boosting frame resistance against wind load and impact bending.
- Thread Engagement and Structural Durability: On a 2.0mm profile, self-tapping screws for heavy-duty hinges and door closers achieve deeper thread engagement, cutting sagging deformation caused by frequent operation by 50% over a 20-year service life.
- Surface Protection and Weatherability: All Huaye aluminum profiles undergo rigorous powder coating surface treatment, imparting exceptional corrosion and rust resistance that preserves appearance against ultraviolet rays and acid rain.
💡 Frequently Asked Questions
Q: Is a 1.5mm or 2.0mm aluminum profile better suited for commercial entrance doors?
A: High-traffic commercial entrance doors are recommended to use 2.0mm aluminum profiles, which provide a 35% increase in flexural strength to endure thousands of daily cycles; low-traffic or standard residential entryways can select 1.5mm profiles to satisfy structural demands while saving 15%-20% on costs.
Precision Profile Selection for Commercial vs. Residential Applications
In practical construction engineering, indiscriminately pursuing excessive wall thickness causes unnecessary material waste, while inadequate wall thickness introduces structural hazards and maintenance pitfalls. As professional external door suppliers, Huaye advises procurement buyers to align profile specifications with building type (villas, residential apartments, hotels, commercial towers), door dimensions, wind load ratings, and traffic density.
- Residential Apartments and Private Villas: Daily operation typically stays under 50 cycles with door heights within 2.2 meters. Deploying 1.5mm high-strength aluminum profiles with multi-cavity structures fulfills daily wind load and security requirements while controlling upfront procurement costs.
- Commercial Towers and Hotel Entrances: Daily foot traffic routinely surpasses 1,000 passes with door heights often exceeding 2.4 meters. Such high-frequency, oversized applications strictly require 2.0mm profiles to keep frames rigid under load.
- Long-Term Sealing Assurance: Across engineering projects produced in Huaye’s 10,000 square meter manufacturing facility, 2.0mm aluminum profiles maintain tight gasket contact over extended periods, preventing air and water leakage alongside performance degradation in thermal insulation, soundproofing, and fire resistance.
💡 Frequently Asked Questions
Q: What are the application limitations for 1.5mm aluminum entrance doors?
A: 1.5mm aluminum doors are not recommended for door leaves exceeding 2.4 meters in height, high-rise buildings in high-wind regions, or commercial main entrances with over 500 daily cycles, as prolonged stress can induce frame micro-deformation and seal failure.

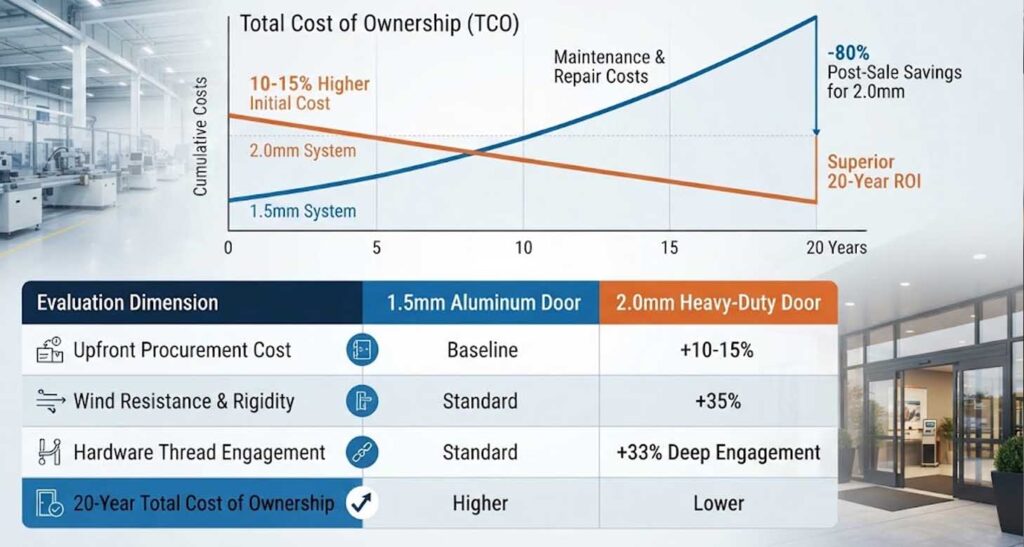

Lifecycle Costs and Return on Investment Analysis
Relying solely on initial unit prices during procurement decisions often leads to inflated operating costs later. Although the factory price of a 2.0mm aluminum profile door is 10%-15% higher than that of a 1.5mm unit, evaluating the Total Cost of Ownership (TCO) over a 20-year service life reveals a superior return on investment for 2.0mm specifications in commercial projects.
| Evaluation Dimension | 1.5mm Aluminum External Door | 2.0mm Aluminum External Door | Commercial Selection Advice |
| Upfront Procurement Cost | Baseline cost (10%-15% lower than 2.0mm) | Approx. 10%-15% higher than 1.5mm | Primary choice for budget-conscious residential builds |
| Wind Resistance & Rigidity | Satisfies standard residential criteria | 35% rigidity boost, resists high wind loads | Preferred for high-rise, coastal, and commercial projects |
| Hardware Thread Engagement | Suitable for standard cycle frequencies | Thread engagement depth increased by 33% | Strongly recommended for high-traffic corridors |
| Seal & Energy Efficiency | Gasket compression may weaken after 5-8 years | Maintains tight seal over a 20-year lifespan | Ideal choice for long-term energy efficiency |
| 5-Year Warranty Repair Rate | Below 2% in low-frequency settings | Near 0% in high-frequency commercial settings | Huaye offers a comprehensive 5-year warranty |
The comparison table highlights that the extra material cost of 2.0mm profiles translates directly into stronger hardware thread engagement and greater structural durability. Hardware screws installed into 2.0mm wall thicknesses gain 1-2 additional threads compared to 1.5mm, determining whether heavy-duty closers and load-bearing hinges remain secure over long-term operation.
Established in 2008, Huaye delivers transparent, cost-effective OEM/ODM customization services worldwide. Backed by a flexible supply chain supporting a Minimum Order Quantity of 1 piece (MOQ: 1), Huaye optimizes thermal break profile designs and volume manufacturing to refine overall costs for 2.0mm heavy-duty doors, enabling buyers to maintain strict quality standards within budget limits.
💡 Frequently Asked Questions
Q: Does increasing aluminum profile wall thickness significantly inflate procurement budgets?
A: Upgrading from 1.5mm to 2.0mm increases finished door procurement costs by only 10%-15%, while extending service life beyond 20 years and cutting post-sale adjustment costs by 80% during the 5-year warranty period.

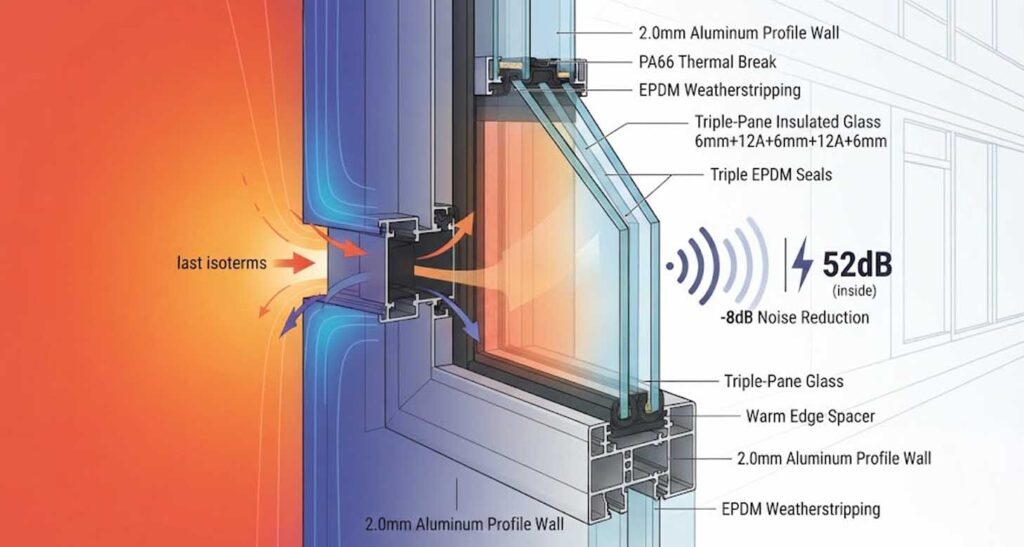

Thermal and Acoustic Performance Analysis for Exterior Aluminum Doors
Modern architectural demands for exterior entryways extend far beyond basic security, elevating energy efficiency and indoor comfort to core indicators. While aluminum alloy is naturally a thermal conductor, integrating wider polyamide PA66 thermal break strips with multi-cavity chamber designs empowers aluminum entry doors with superior thermal insulation and acoustic performance. Within this system, profile wall thickness dictates the load capacity for insulation components and glazing units.
- Heavy-Duty Glazing Capacity: The robust structural sidewalls of 2.0mm profiles safely support heavier double or triple-pane tempered glass units (e.g., 6mm + 12A + 6mm configurations).
- Thermal and Acoustic Enhancements: According to ISO 10077 test reports, 2.0mm systems equipped with heavy insulated glass and EPDM weather seals yield significantly lower heat transfer coefficients (U-value) and improve sound insulation by 8 dB over 1.5mm systems.
- Structural Fire Resistance: Huaye’s high-strength aluminum alloy chambers maintain structural integrity longer during fire incidents, working in tandem with intumescent fire seals and fire-rated glass to extend fire resistance duration.
💡 Frequently Asked Questions
Q: Do 2.0mm aluminum profiles offer better thermal and acoustic insulation than 1.5mm profiles?
A: Yes, 2.0mm aluminum profiles support heavier multi-layer insulated glass units and wider thermal break strips, enhancing sound insulation by 8 dB and lowering heat transfer coefficients (U-value) for superior energy efficiency.

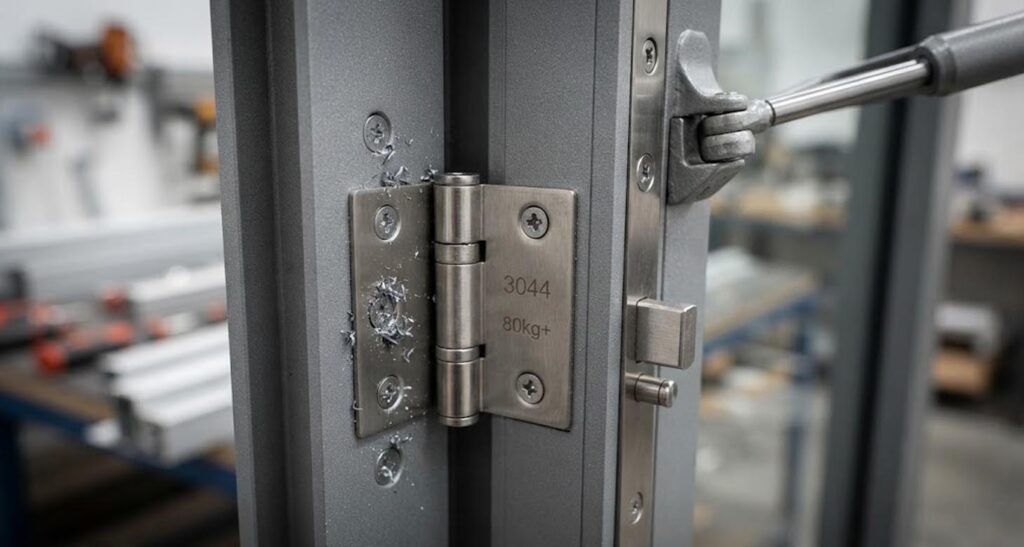

Optimization Guide for Installation and Hardware Selection
Even when specifying premium 2.0mm aluminum profiles, improper hardware configuration or sub-standard installation practices compromise overall performance. Given the substantial self-weight of heavy-duty aluminum doors, hardware selection and anchoring methods require rigorous execution.
- Heavy-Duty Hardware Matching: Heavy-duty aluminum doors with 2.0mm wall thickness should be fitted with 304 stainless steel hinges rated at ≥80kg per leaf or heavy-duty floor springs, leveraging deep thread engagement to eliminate door sagging over time.
- Multi-Point Security Integration: Supported by the rigid structure of 2.0mm profiles, multi-point lock systems and smart electronic locks integrate smoothly, preventing latch binding caused by long-term frame warping.
- Standardized Installation & Corrosion Protection: Perimeter gaps must be filled with high-grade polyurethane expanding foam and sealed externally with weather-resistant silicone. Enhanced by Huaye’s powder coating protective layer, aluminum frames resist alkaline corrosion from mortar contact, preserving the 20-year design lifespan.
💡 Frequently Asked Questions
Q: What hardware fittings are required for 2.0mm aluminum external doors?
A: 2.0mm heavy-duty aluminum doors should be equipped with stainless steel hinges supporting 80kg per leaf, multi-point locking mechanisms with at least three locking points, and heavy-duty door closers featuring constant-temperature hydraulic damping to guarantee smooth operation.
Seeking high-performance custom aluminum entry doors? Contact Huaye’s expert team with 18 years of manufacturing experience for tailored OEM/ODM solutions and free samples!
| OEM&ODM Factory | Email:tom@huayegate.com | Whatapp:+86 13055509263 |
Selecting between 1.5mm and 2.0mm aluminum profiles comes down to matching project demands. While 1.5mm profiles offer a cost-effective choice for standard residential builds, 2.0mm profiles deliver the strength, thermal insulation, and durability required for high-traffic commercial developments.
As professional external door manufacturers operating a 10,000 square meter facility with 18 years of experience, Huaye provides B2B buyers with flexible OEM/ODM solutions, an MOQ: 1 policy, and a 5-year warranty. Contact our team today for expert consultation and free samples for your next project.
